Bundle of 24 Lighthoof Panels and Geotextile Fabric

1 / 5 Fabric included

Bundle of 24 Lighthoof Panels and Geotextile Fabric

Name: Bundle of 24 Lighthoof Panels and Geotextile Fabric
Brand: Lighthoof
Price: 5249.0 USD
Availability: InStock

Cover an entire small drylot in one project.

$5,249~~$6,076~~ You save $827

About $218.70 per panel with the fabric. Free shipping in the continental US.

Bundle size

2 panels 144 sq ft · $499 4 panels 288 sq ft · $975 10 panels 720 sq ft · $2,299 24 panels 1,728 sq ft · $5,249 50 panels 3,600 sq ft · $9,999 Any countSingle panels

Bundles

What's included

24 Lighthoof panels, each 6' x 12' (1,728 sq ft total)
Geotextile fabric: two 8' x 100' pieces and one 8' x 50' piece (we may substitute sizes as inventory allows)
40 EnviroLock ties per panel for connecting the panels
Free LTL freight shipping in the continental US (fabric ships separately)

Covers1,728 sq ft (36' x 48')

Plan on gravel36 to 48 cu yd

Ships byLTL freight

Install timeAbout four weekends

In stock and ready to go. Ships by freight, generally within 3 business days of your order. Delivery is generally 5 to 15 business days after that.

Made in Texas, woman-owned

Free freight shipping, continental US

10-year limited warranty

Only patented geocell built for horses

Not sure this is the right size? Use the Bundle Calculator or call or text us at 800-279-4716.

Free freight shipping in the continental US. Your panels ship from our manufacturing facility in Houston, TX, and generally arrive 5 to 15 business days after they ship. The freight company calls you to schedule delivery. Fabric ships separately and usually arrives around the same time, and fabric can't be returned. See Shipping Information for details, and be sure to read our Return Policy.

Goes right over mudNo excavation or base layer.

Fabric includedTwo 8' x 100' + one 8' x 50', sized for this bundle.

Tractor toughDrive farm vehicles on it once compacted.

DIY FriendlyAbout 85% install it themselves.

Proven since 201241,480+ panels sold.

Real Results

A Drylot, Before and After

Drag the slider to see the same spot before Lighthoof and after.

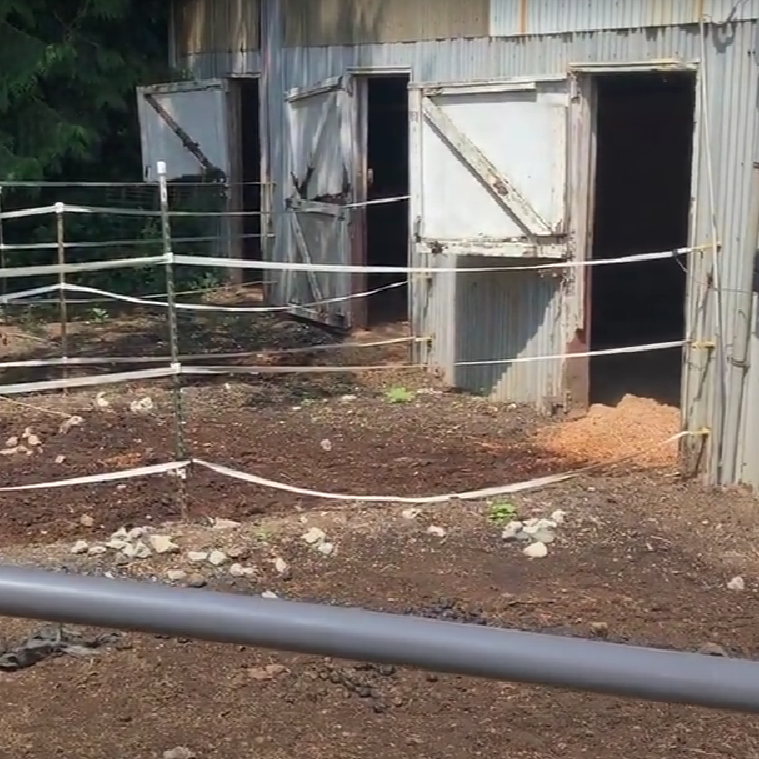

Before

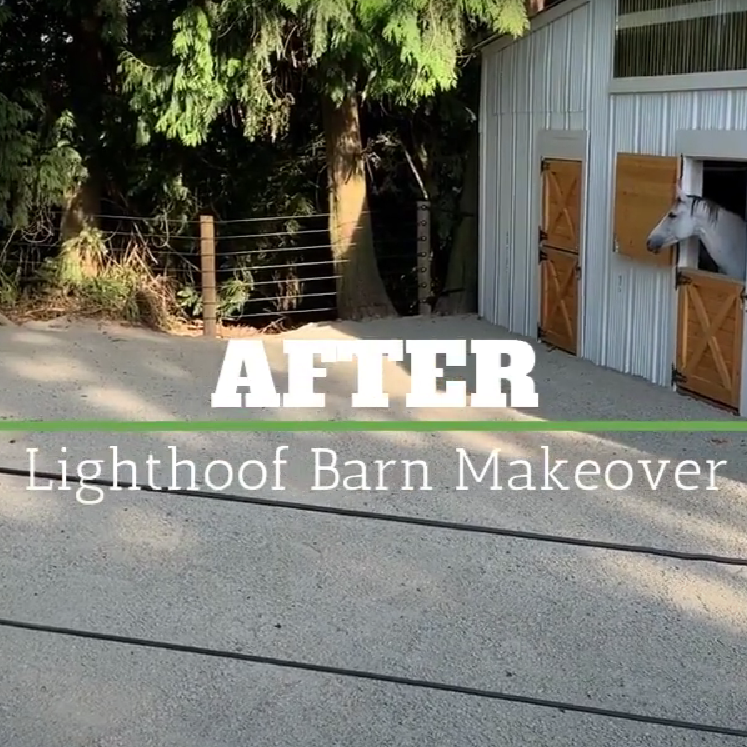

After

A good size for

An entire small drylot

24 panels cover 1,728 square feet. That's an entire small drylot, like a 36' x 48' area. It's also six 12' x 24' runs, or three 24' x 24' paddocks.

Lighthoof panels hold your gravel in place so your horses can't push it down into the mud. Do it once, keep the manure picked up, and it stays mud-free.

Everything installs over the ground you have, with the included fabric underneath. If you want to change how water moves across the lot, do that grading first, because Lighthoof locks in the grade.

An order this size ships free by LTL freight on a pallet. The freight company will call you to schedule the delivery.

Each tile is one 6' x 12' panel, drawn to scale. Also works as six 12' x 24' runs or three 24' x 24' paddocks.

Watch it work

Lighthoof “in the field”

Delivery

How freight delivery works

Ships from Houston Your panels ship on a pallet by LTL freight. Fabric ships separately and usually arrives around the same time.
They call to schedule The freight company calls you to set a delivery appointment. The call usually comes from an 800 number.
Liftgate drop-off A full-size truck with a liftgate lowers your shipment to the ground. Someone needs to be there to sign, so look it over for damage before you do.
Tight driveway? If a big truck can't get down your road or driveway, tell us when you order, since extra delivery charges may apply.

How it works

The cells support the gravel. The gravel supports your horse.

Mud happens when hooves push gravel down and pull soil up. Lighthoof locks a compacted layer of stone in place so it stays on top and holds firm through winter.

This bundle includes the fabric layer, so you only need to bring the gravel.

1 to 2" loose top layer You supply: 36 to 48 cu yd total

24 Lighthoof panels, 3" cells Included

6 oz geotextile fabric Included: two 8' x 100' + one 8' x 50'

Your existing ground Even if it's mud today

Four steps to a mud-free paddock

Step 1

Lay the included fabric

Right over the ground you have. Finish any grading first, because Lighthoof locks in the grade.

Step 2

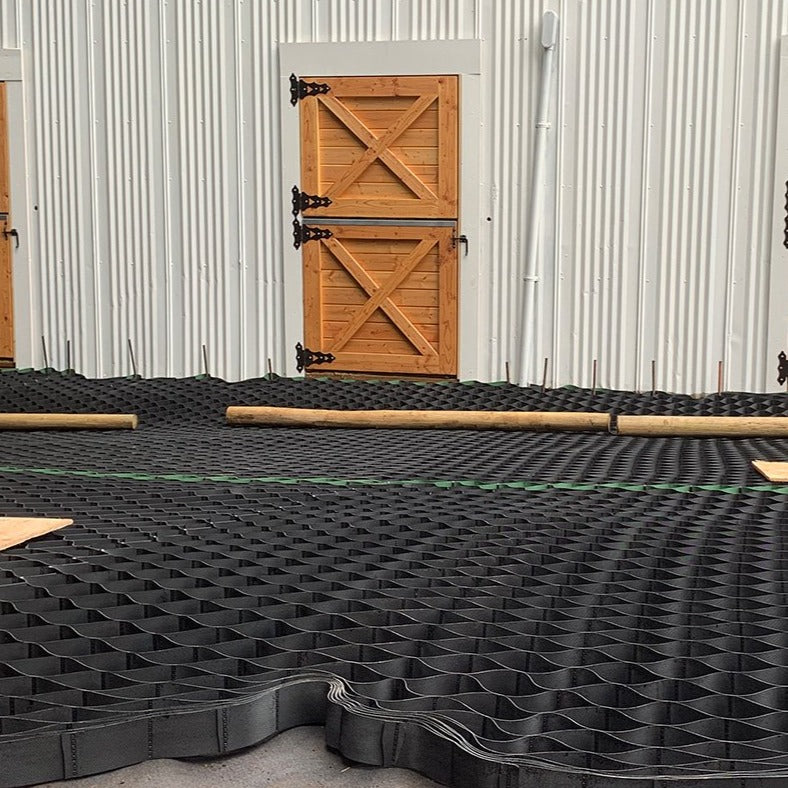

Stretch and tie panels

Each panel opens to 6' x 12'. 40 ties per panel connect them into one mat.

Step 3

Fill with 3/8"-1/2" minus

Angular crushed rock with fines, 36 to 48 cu yd for this bundle. Never pea gravel or sand.

Step 4

Compact it

Run a plate compactor until the diamond pattern shows, top up, and compact again.

Need a Different Size?

For two 30' stall runs, the 10-panel bundle is enough. For a 60' x 60' paddock, look at the 50-panel bundle. Or call or text us at 800-279-4716 and we'll help you work out an exact count.

Smaller 10 panels + fabric 720 sq ft $2,299 ~~$2,510~~

Bigger 50 panels + fabric 3,600 sq ft $9,999 ~~$12,550~~

Bundle Calculator

How many panels do you need?

Enter your measurements for an instant panel count, price and layout.

The details

Panels: 24, each 6' x 12' expanded
Covers: 1,728 sq ft (36' x 48')
Fabric: Two 8' x 100' pieces and one 8' x 50' piece (sizes may be substituted as inventory allows)
Ties: 40 EnviroLock ties per panel
Cells: 3" tall, about 5.5" across
Panel weight: About 576 lbs total
Made in: Houston, Texas
Warranty: 10-year limited
Shipping: Free LTL freight on a pallet. Fabric ships separately.

Common questions

How does freight delivery work?

Your panels ship on a pallet by LTL freight from Houston, TX. The freight company will call you to set up a delivery appointment, and that call usually comes from an 800 number. The truck is a full-size tractor trailer with a liftgate that lowers the pallet to the ground. Someone needs to be there to sign for it, so look the pallet over for damage before you do. If you can't move a whole pallet, you can cut the bands and carry the panels one at a time. If a big truck can't get down your road or driveway, tell us when you order, since extra delivery charges may apply.

How much gravel do I need for 24 panels?

Plan on 36 to 48 cubic yards of 3/8" minus crushed rock with the fines left in. 1/4" minus works too. We're happy to look at your quarry's material before you order it. Email a photo with a dime in it for scale to mud@lighthoof.com.

Can a contractor install it for me?

Yes. Any contractor who does landscaping, earthwork or fencing can install Lighthoof from our instructions, and we're glad to talk your contractor through it. About 85% of our customers install their own panels. With two people working by hand, 24 panels is about four weekends. A tractor or skid steer for the gravel speeds that up.

Do I have to install it all at once?

No. You can work in sections. Just make sure every exposed edge has a firm border before your horses are on it.

How long does it last?

Lighthoof comes with a 10-year limited warranty. If the gravel is compacted with a plate compactor at install, many customers go several years before they need to add more.

We're a nonprofit. Is there a program for us?

Yes. Verified 501(c)(3) organizations can apply to our Foundations Program to help offset costs.
